Ninja Towns -> Ninja Tap with support for FM-Towns controllers SELECT and RUN(START) buttons will work

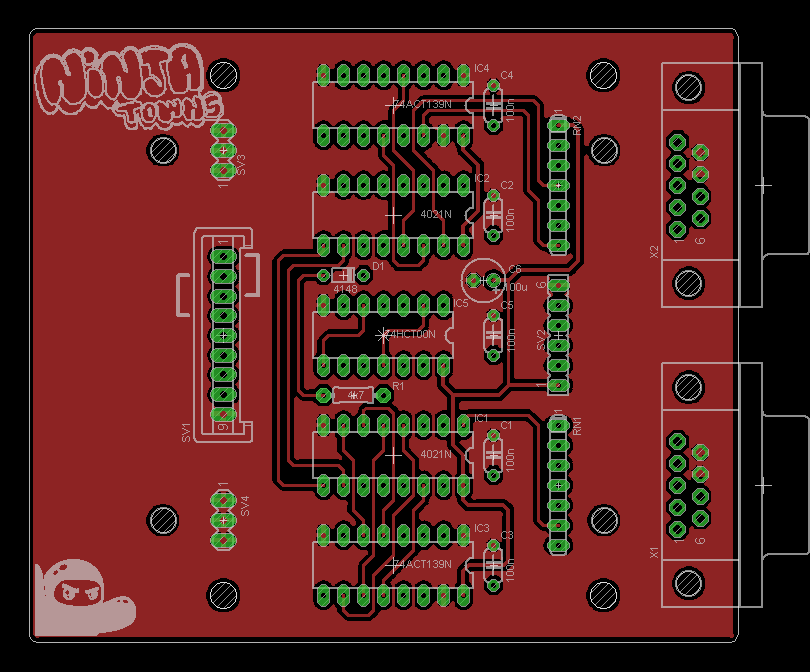

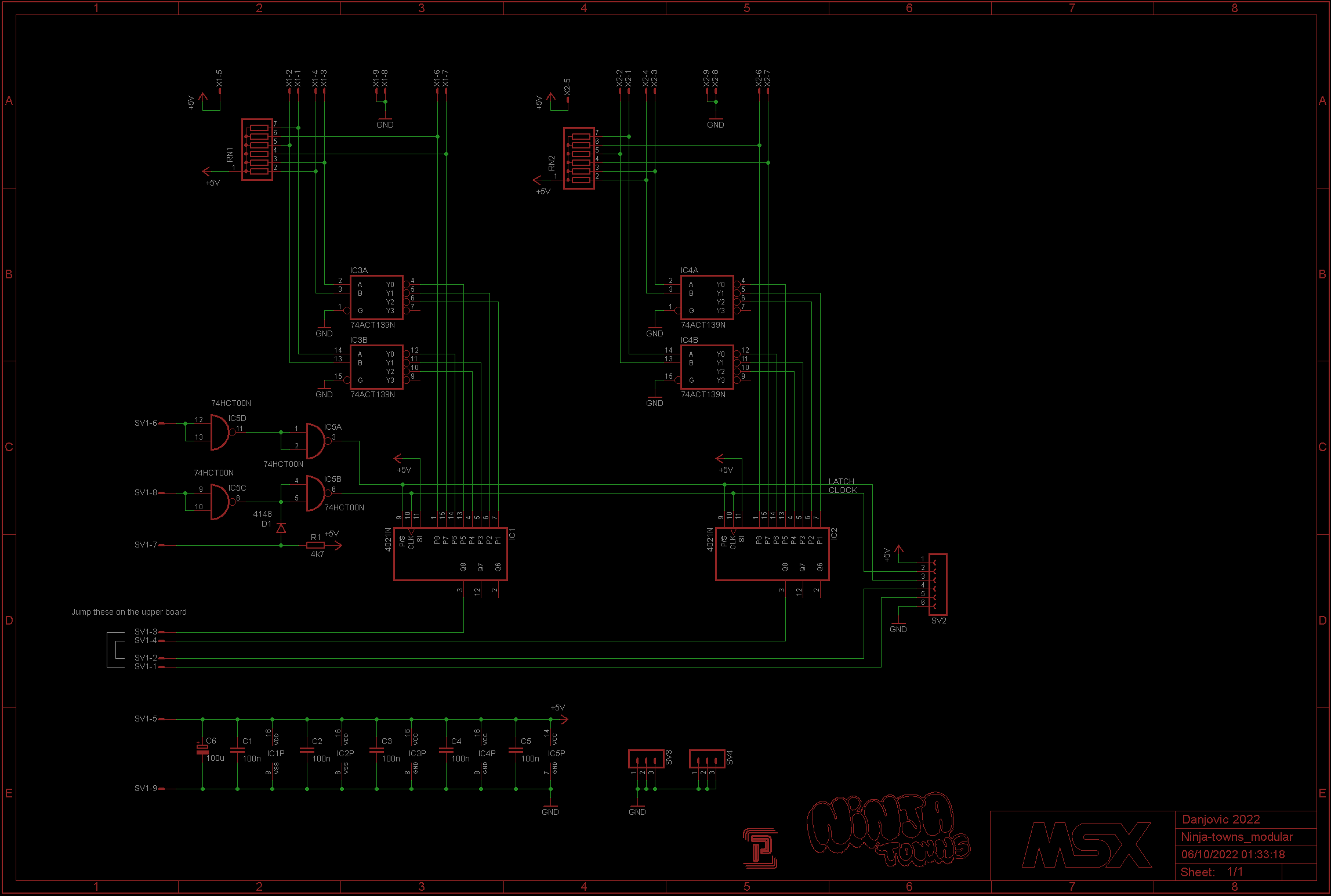

Circuit is cut in half so the board can be stacked, pretty much like the original Ninja Tap.
PCB is designed for a PB-203 case.
Files available at github repository

PS: there is a NinjaTown website. Couldn't resist to borrow the name.
